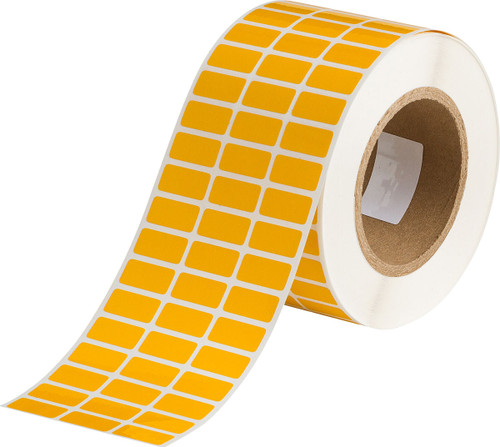

This B-423Y material is ideal for use in component identification, barcode label and rating plates.
| Part Number | THT-5-423-10-YL |
| Product Number | 132411 |
| UPC | 754473844820 |
| UOM | Roll of 10000 Labels |
| Brand Name | Brady |
| Adhesive Type | Permanent Acrylic |
| After Process | Yes, this material will work with this application |
| Application | Asset Tracking, Circuit Board Labeling, General Identification |
| Approval/Compliance (EMEA) | UL Recognised |
| Board Application | Through Hole Technology - Top, After Process |
| Brady Material Number | B-423Y |
| Color | Yellow |
| Compatible Surface Types | High Surface Energy |
| Continuous or Die-cut | Die-cut |
| Core Diameter (imperial) | 3 in |
| Core Diameter (metric) | 76.20 mm |
| Corner Type | Rounded |
| Dimensions (imperial) | 0.5 in H x 1 in W |
| Dimensions (metric) | 25,40 mm (W) x 12,70 mm (H) |
| Finish | Gloss |
| Format | IP Enabled |
| Height (imperial) | 0.5 in |
| Height (metric) | 12.70 mm |
| Horizontal Repeat (imperial) | 1.075 in |
| Horizontal Repeat (metric) | 27.31 mm |
| Indoor or Outdoor Use | Outdoor Use |
| Industry Compliance UL | UL969A |
| Lab Environment | Freezer, Autoclave |
| Label Properties | Aggressive Adhesive, Harsh Environment, Heat Resistant, Permanent Adhesive |
| Label/Tape Size (imperial) | 0.5 in H x 1 in W |
| Label/Tape Size (metric) | 12.70 mm H x 25.40 mm W |
| Material | Polyester |
| Material Properties | Halogen-free |
| Material Type | Polyester |
| Maximum Service Temperature (°C) | 110 °C |
| Maximum Service Temperature (°F) | 230 °F |
| Minimum Service Temperature (°C) | -70 °C |
| Minimum Service Temperature (°F) | -94 °F |
| Performance Characteristics | Abrasion resistance, Fuel/Oil resistance, High heat resistance, Low temperature resistance |
| Primary Noun, Basic Function.1 | Label |
| Print Technology | Thermal Transfer |
| Printer Compatibility | BBP81, i5100, i6100, i7100, i7500, PR Plus, IP Series, THT 3 in Core Printers |
| Printer and Label Applications | General Identification |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 10000 |
| Quantity per Row | 3 |
| Recommended Ribbon | i75-R6007, IP-R6007, R6007 |
| Recommended Ribbon Series | R4900, R6000HF, R6200 |
| Ribbon Series | R6000HF |
| SAP B-Number | B-423Y |
| SAP Local Description | THT-5-423-10-YL |
| Service Temperature Range (°C) | -70 °C - 110 °C |
| Service Temperature Range (°F) | -94 °F - 230 °F |
| Shape | Rectangle |
| Smart Cell | No |
| Surface | For smooth surfaces |
| Surface Mount Technology SMT | No, this material does not work with this application |
| Thickness (imperial) | 0.0034 in |
| Thickness (metric) | 0.086 mm |
| Through Hole Technology | Top: Yes. In extreme high temperatures, testing of this material is recommended, Bottom: No |
| Total Quantity | 10000 |
| Trade Name | WorkHorse |
| Vertical Repeat (imperial) | 0.6 in |
| Vertical Repeat (metric) | 15.24 mm |
| Web Width (imperial) | 3.35 in |
| Web Width (metric) | 85.09 mm |
| Width (imperial) | 1 in |
| Width (metric) | 25.40 mm |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
