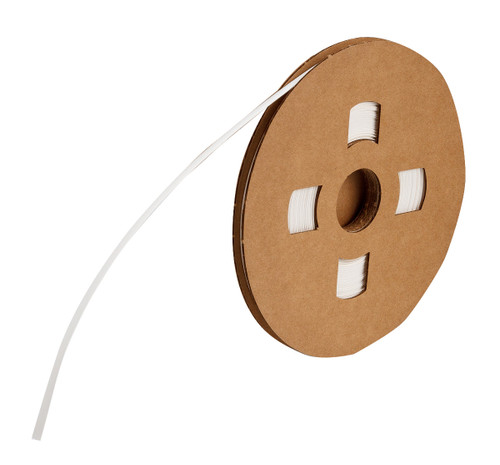

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.
| Part Number | HT-C-125-WT |
| Product Number | 131410 |
| UPC | 662820998372 |
| UOM | Roll of 100 ft |
| Brand Name | Brady |
| Application | Wire and Cable Labeling |
| Approval/Compliance (EMEA) | NASA SP-R-0022A Outgassing Performance, SAE-AMS-DTL-23053/18 (Class 2), SAE AS-81531, MIL-STD-202 Method 215K |
| Brady Material Number | B-345 |
| Color | White |
| Continuous or Die-cut | Continuous |
| Core Diameter (imperial) | 1.625 in |
| Core Diameter (metric) | 41.28 mm |
| Diameter as Supplied (imperial) | 0.125 in |
| Diameter as Supplied (metric) | 3.18 mm |
| Dimensions (imperial) | 0.235 in H x 100 ft L |
| Dimensions (metric) | 5,97 mm (H) x 30,48 m (L) |
| Enables Industry Compliance (North America) | Method 215K, MIL-STD-202G, SAE-AMS-DTL-23053/18 (Class 2) for Insulation Sleeving, SAE-AS-81531 Marking of Electrical Insulating Materials |
| Finish | Matte |
| Height (imperial) | 0.235 in |
| Height (metric) | 5.97 mm |
| Indoor or Outdoor Use | Outdoor Use |
| Industry Compliance MIL_STD | MIL-STD-202G, Method 215K |
| Label Properties | Heat Shrink |
| Length (imperial) | 100 ft |
| Length (metric) | 30.48 m |
| Material | High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve |
| Material Properties | Flame-retardant, Heat-shrinkable |
| Material Type | Polyvinylidene |
| Maximum Service Temperature (°C) | 225 °C |
| Maximum Service Temperature (°F) | 437 °F |
| Maximum Wire Diameter (imperial) | 0.11 in |
| Maximum Wire Diameter (metric) | 2.79 mm |
| Maximum Wire Gauge | 16 AWG |
| Minimum Service Temperature (°C) | -55 °C |
| Minimum Service Temperature (°F) | -67 °F |
| Minimum Wire Diameter (imperial) | 0.063 in |
| Minimum Wire Diameter (metric) | 1.60 mm |
| Minimum Wire Gauge | 20 AWG |
| Primary Noun, Basic Function.1 | Sleeve |
| Print Technology | Thermal Transfer |
| Printable Sides | Single-Side Printable |
| Printer Compatibility | BBP72, i5100, i7100, i7500, THT 3 in Core Printers |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Recommended Ribbon | i75-R6006, IP-R6006, R6006 |
| Recommended Ribbon Series | R6000HF, R6600 |
| Recovered Diameter (imperial) | 0.062 in |
| Recovered Diameter (metric) | 1.57 mm |
| Recovered Wall Thickness (imperial) | 0.015 in |
| Recovered Wall Thickness (metric) | 0.38 mm |
| Resistance Properties | Chemical-resistant, Gasoline-resistant, Smear-resistant |
| Ribbon Series | R6000HF |
| Roll Length (imperial) | 100 ft |
| Roll Length (metric) | 30.48 m |
| SAP B-Number | B-345 |
| SAP Local Description | HT-C-125-WT |
| Service Temperature Range (°C) | -55 °C - 225 °C |
| Service Temperature Range (°F) | -67 °F - 437 °F |
| Shrink Ratio | 2:1 (3:1 for 0.094 in Dia) |
| Sleeve Size (imperial) | 0.125 in Dia x 100 ft L |
| Sleeve Size (metric) | 3.18 mm Dia x 30.48 m L |
| Smart Cell | No |
| Trade Name | PermaSleeve |
| Wire Diameter Range (imperial) | 0.063 in to 0.11 in |
| Wire Diameter Range (metric) | 1.60 mm to 2.79 mm |
| Wire Gauge Range | 20 AWG - 16 AWG |
