6" x 6" Brady Label (Green on Glow) (Sign) - 59122
- Part #:
- 59122
Product Description

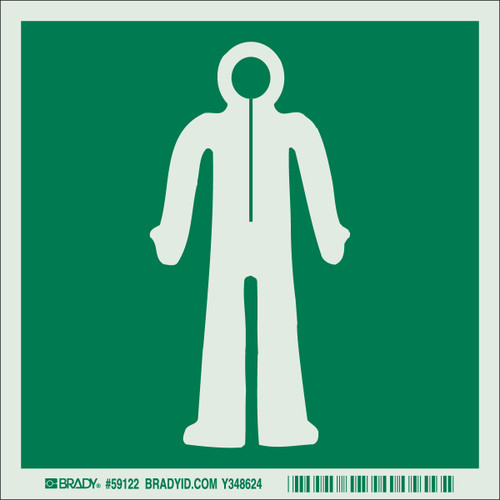

Brady, 59122, Label, 6" W, 6" H, Green on Glow
30 Years of Service
Huge Inventory / Fast Shipping
Easy 30 Day Return Policy
Secured Transaction
In the event of an emergency, highly visible IMO signs help warn, instruct and advise passengers of proper evacuation procedures on the vessel.
| Part Number | 59122 |
| Product Number | 59122 |
| UPC | 754473591229 |
| UOM | Sign |
| Brand Name | Brady |
| Adhesive Type | Permanent Acrylic |
| Application | Facility Identification |
| Approval/Compliance (EMEA) | ASTM E-2072-00 / ASTM E-2073-00, ASTM E-162, ASTM E-648, ASTM E-662, IMO Resolution A.752(18), ISO/CD 15370, Marine Safety Committee MSC.27(61), DIN 67 510 (Parts 1 - 4), OSHA 1910.37 |
| Brady Material Number | B-324 |
| Calculated Sign Shape | Square |
| Color | Green on Glow |
| Compatible Surface Types | High Surface Energy |
| Corner Type | Square |
| Dimensions (imperial) | 6 in H x 6 in W |
| Dimensions (metric) | 152,40 mm (W) x 152,40 mm (H) |
| Enables Industry Compliance (North America) | ANSI Z53.1-1967, ANSI Z535-2006, OSHA 1910.145 |
| Height (imperial) | 6 in |
| Height (metric) | 152.40 mm |
| Illumination | Glow in the Dark |
| Image or Text | Image Only |
| Label Properties | Glow in the Dark |
| Material | Photoluminescent Polyester |
| Material Properties | Explosion-safe, Photoluminescent |
| Material Type | Polyester |
| Maximum Service Temperature (°C) | 80 °C |
| Maximum Service Temperature (°F) | 176 °F |
| Meets Industry Standards - Signs | ANSI Z53.1-1967 |
| Minimum Application Temperature (°C) | 10 °C |
| Minimum Application Temperature (°F) | 50 °F |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| PSPA Photoluminescence Class | Class II |
| Primary Noun, Basic Function.1 | Sign |
| Printer supply or Pre-printed | Pre-printed |
| Resistance Properties | Abrasion-resistant, Chemical-resistant |
| SAP B-Number | B-324 |
| SAP Local Description | B324 6X6 GRN/GLO IMO IMMERSION SUIT |
| Service Temperature Range (°C) | -40 °C - 80 °C |
| Service Temperature Range (°F) | -40 °F - 176 °F |
| Shape | Square |
| Sign Size-General (imperial) | 6 in x 6 in |
| Sign Type | Maritime Transport |
| Text Language | No text |
| Thickness (imperial) | 0.0079 in |
| Thickness (metric) | 0.201 mm |
| Trade Name | BradyGlo |
| Width (imperial) | 6 in |
| Width (metric) | 152.40 mm |
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | No - Does not contain |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Not Applicable |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
