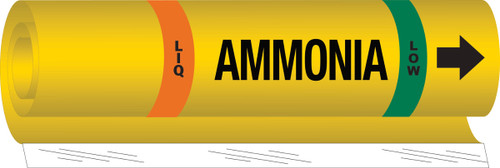

These IIAR-compliant pipe markers come with the traditional yellow background and are recommended for use in labeling ammonia piping and its contents.
| Part Number | 58009 |
| Product Number | 58009 |
| UPC | 754473580094 |
| UOM | Each |
| Brand Name | Brady |
| Application | Pipe and Valve Marking |
| Arrow Direction | Directional |
| Average Outdoor Durability | 5 to 8 Years |
| Brady Material Number | B-689 |
| Cards or Sheets per Pack | 1 |
| Character Height (imperial) | 1.30 in |
| Character Height (metric) | 33 mm |
| Class | Other liquids |
| Color | Black, Green, Orange on Yellow |
| Combined IIAR Legend | AMMONIA LIQ LOW |
| Compatible Surface Types | Curved, Rough |
| Country | US, CA, MX |
| Dimensions (imperial) | 12 in H x 26 in W |
| Dimensions (metric) | 66,04 cm (W) x 30,48 cm (H) |
| Enables Industry Compliance (North America) | ANSI A13.1 |
| Height (imperial) | 12 in |
| Height (metric) | 30.48 cm |
| IIAR Legend | AMMONIA |
| IIAR Phase | LIQ |
| IIAR Pressure Level | LOW |
| Indoor or Outdoor Use | Outdoor Use |
| Laminated | Polyester Overlaminate |
| Material | Coiled Plastic |
| Material Properties | Self-laminating |
| Material Type | Plastic |
| Maximum Pipe Diameter (imperial).1 | 7.875 in |
| Maximum Pipe Diameter (metric) | 200.03 mm |
| Maximum Service Temperature (°C) | 120 °C |
| Maximum Service Temperature (°F) | 248 °F |
| Minimum Pipe Diameter (imperial).1 | 2.5 in |
| Minimum Pipe Diameter (metric) | 63.50 mm |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| Pipe Diameter Range (imperial) | 2.5 - 7.875 in |
| Pipe Diameter Range (metric) | 63.50 - 200.03 mm |
| Pipe Marker Mounting Style | Wrap Around |
| Pipe Marker Style | II |
| Pre-Printed Areas on Label | IIAR Legend |
| Primary Noun, Basic Function.1 | Pipe Marker |
| Printer supply or Pre-printed | Pre-printed |
| Quantity per Card or Sheet | 1 |
| Resistance Properties | Abrasion-resistant, Chemical-resistant, UV-resistant, Water-resistant, Humidity-resistant, Weather-resistant |
| SAP B-Number | B-689 |
| SAP Local Description | B689 IIAR STYLE II 58009 (BLANK) AMMONIA |
| Service Temperature Range (°C) | -40 °C - 120 °C |
| Service Temperature Range (°F) | -40 °F - 248 °F |
| Text Language | English |
| Text Legend | BLANK/LIQ/LOW/Ammonia |
| Thickness (imperial) | 0.006 in |
| Thickness (metric) | 0.152 mm |
| Width (imperial) | 26 in |
| Width (metric) | 66.04 cm |
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance (Y/N) | N |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Not Applicable |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
