Brady Accessory - 130824
- Part #:
- 130824
Product Description
Push Button and E-Stop Lockout Device Attachment - Safety Cover Bases, Large, 5/Pack
30 Years of Service
Huge Inventory / Fast Shipping
Easy 30 Day Return Policy
Secured Transaction
One-time installation of a low profile base enables fast and convenient lockout of ON/OFF and engaged emergency stop controls at the point of need (covers sold separately).
| Part Number | 130824 |
| Product Number | 130824 |
| UPC | 754473810993 |
| UOM | Pack of 5 Each |
| Brand Name | Brady |
| Adhesive (Y/N) | Yes |
| Application | Lockout Tagout |
| Brady Material Number | LOTO-72 |
| Button Size (Imperial) | 1.181 in |
| Button Size (metric) | 30.00 mm |
| Button Type | IEC, NEMA |
| Color | Clear |
| Diameter (imperial) | 3.3 in |
| Diameter (metric) | 83.80 mm |
| Dimensions (imperial) | 3.3 in Dia |
| Dimensions (metric) | 83,80 mm (Dia) |
| Enables Industry Compliance (North America) | OSHA 1910.147 |
| Hole Inside Diameter (imperial) | 1.22 in |
| Hole Inside Diameter (metric) | 31.00 mm |

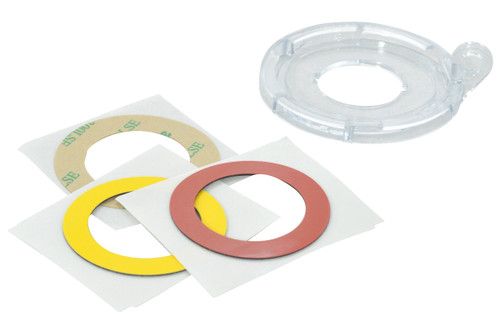

| Includes | (1) Yellow Label, (1) Adhesive Backing, (1) Base, (1) Red Label |
| Industry | Beverage processing, Chemical, Automotive, Construction, Energy utilities, Food processing, Manufacturing, Oil & gas, Process, Pulp & paper |
| Lockout Material | Polycarbonate |
| Material | Polycarbonate |
| Material Type | Polycarbonate |
| Maximum Number of Padlocks | 1 |
| Maximum Service Temperature (°C) | 80 °C |
| Maximum Service Temperature (°F) | 176 °F |
| Maximum Shackle Diameter (imperial) | 0.32 in |
| Maximum Shackle Diameter (metric) | 8.13 mm |
| Minimum Service Temperature (°C) | -20 °C |
| Minimum Service Temperature (°F) | -4 °F |
| Primary Noun, Basic Function.1 | Lockout Device |
| Risk Type | Electrical Risk, Mechanical Risk |
| SAP B-Number | LOTO-72 |
| SAP Local Description | 30MM PUSH BUTTON/E-STOP LO BASES, 5PK |
| Service Temperature Range (°C) | -20 °C - 80 °C |
| Service Temperature Range (°F) | -4 °F - 176 °F |
| Contains CA PROP 65 Substance | No - Does not contain |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | No - Does not contain |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Not Applicable |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
