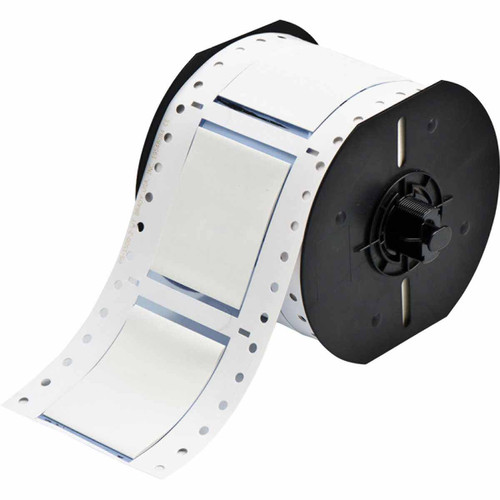

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
| Part Number | B33-1500-2-7642 |
| Product Number | 142905 |
| UPC | 662820967453 |
| UOM | Roll of 50 Each |
| Brand Name | Brady |
| Application | Electrical Labeling, Wire and Cable Labeling |
| Brady Material Number | B-7642 |
| Color | White |
| Continuous or Die-cut | Die-cut |
| Diameter as Supplied (imperial) | 1.5 in |
| Diameter as Supplied (metric) | 38.10 mm |
| Dimensions (imperial) | 2.433 in H x 2 in W |
| Dimensions (metric) | 50,80 mm (W) x 61,80 mm (H) |
| Enables Industry Compliance (North America) | Halogen Free (DIN VDE 0472 Part 815) |
| Finish | Matte |
| Height (imperial) | 2.433 in |
| Height (metric) | 61.80 mm |
| Industry | Aerospace, Electrical, Voice & data communication |
| Industry Compliance MIL_STD | MIL-STD-202G, Method 215K |
| Industry Compliance UL | UL224 |
| Label Properties | Heat Shrink |
| Material | Heat-shrink Polyolefin |
| Material Properties | Heat-shrinkable |
| Material Type | Polyolefin |
| Maximum Service Temperature (°C) | 120 °C |
| Maximum Service Temperature (°F) | 248 °F |
| Maximum Wire Diameter (imperial) | 1.45 in |
| Maximum Wire Diameter (metric) | 36.83 mm |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| Minimum Wire Diameter (imperial) | 0.75 in |
| Minimum Wire Diameter (metric) | 19.05 mm |
| Primary Noun, Basic Function.1 | Sleeve |
| Print Technology | Thermal Transfer |
| Printable Sides | Single-Side Printable |
| Printer Compatibility | BBP33, i3300, i5300 |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 50 |
| Quantity per Row | 1 |
| Recommended Ribbon | B30-R4300 |
| Recommended Ribbon Series | R4300, R6000HF, R6400, R6600 |
| Recovered Diameter (imperial) | 0.75 in |
| Recovered Diameter (metric) | 19.05 mm |
| Recovered Wall Thickness (imperial) | 0.035 in |
| Recovered Wall Thickness (metric) | 0.89 mm |
| Resistance Properties | Chemical-resistant, Corrosion-resistant, Humidity-resistant, Self-Extinguishing, UV-resistant, Weather-resistant |
| Ribbon Series | B30-R4300 |
| Roll Width (imperial) | 2 in |
| Roll Width (metric) | 50.80 mm |
| SAP B-Number | B-7642 |
| SAP Local Description | B33-1500-2-7642 |
| Service Temperature Range (°C) | -40 °C - 120 °C |
| Service Temperature Range (°F) | -40 °F - 248 °F |
| Shrink Ratio | 2:1 |
| Sleeve Size (imperial) | 1.5 in Dia x 2 in W |
| Sleeve Size (metric) | 38.10 mm Dia x 50.80 mm W |
| Sleeve Slits | No |
| Sleeve Width (imperial) | 2 in |
| Sleeve Width (metric) | 50.80 mm |
| Smart Cell | Yes |
| Trade Name | PermaSleeve |
| Vertical Repeat (imperial) | 3 in |
| Vertical Repeat (metric) | 76.20 mm |
| Web Width (imperial) | 3.49 in |
| Web Width (metric) | 88.65 mm |
| Width (imperial) | 2 in |
| Width (metric) | 50.80 mm |
| Wire Diameter Range (imperial) | 0.75 in to 1.45 in |
| Wire Diameter Range (metric) | 19.05 mm to 36.83 mm |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
| CA Prop 65 Labeled? | Y |
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Substance (Y/N) | Y |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | Unavailable |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
