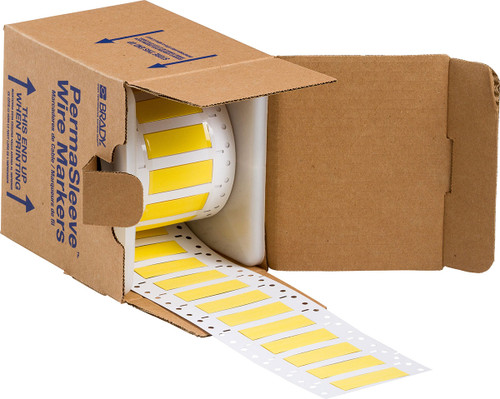

The B-344 PermaSleeve material is suitable for use in applications that require greater resistance to harsh chemicals such as fuel and high power cleaning solvents.
| Part Number | 3FR-375-2-YL-S |
| Product Number | 112758 |
| UPC | 662820917595 |
| UOM | Roll of 250 Each |
| Brand Name | Brady |
| Application | Wire and Cable Labeling |
| Approval/Compliance (EMEA) | SAE-AMS-DTL-23053/5 C (Class 1), SAE AS-81531, MIL-STD-202 Method 215K, UL224 |
| Brady Material Number | B-344 |
| Color | Yellow |
| Continuous or Die-cut | Die-cut |
| Core Diameter (imperial) | 3 in |
| Core Diameter (metric) | 76.20 mm |
| Diameter as Supplied (imperial) | 0.375 in |
| Diameter as Supplied (metric) | 9.53 mm |
| Dimensions (imperial) | 0.645 in H x 2 in W |
| Dimensions (metric) | 50,80 mm (W) x 16,38 mm (H) |
| Enables Industry Compliance (North America) | ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202, SAE-AMS-DTL-23053, SAE-AS-81531, UL Recognized |
| Format | IP Enabled |
| Height (imperial) | 0.645 in |
| Height (metric) | 16.38 mm |
| Industry Compliance MIL_STD | MIL-STD-202G, Method 215K |
| Industry Compliance UL | UL224 |
| Label Properties | Heat Shrink |
| Material | Heat-shrink Polyolefin |
| Material Properties | Flame-retardant, Heat-shrinkable |
| Material Type | Polyolefin |
| Maximum Service Temperature (°C) | 130.6 °C |
| Maximum Service Temperature (°F) | 267 °F |
| Maximum Wire Diameter (imperial) | 0.32 in |
| Maximum Wire Diameter (metric) | 8.13 mm |
| Maximum Wire Gauge | 4 AWG |
| Minimum Service Temperature (°C) | -55 °C |
| Minimum Service Temperature (°F) | -67 °F |
| Minimum Wire Diameter (imperial) | 0.125 in |
| Minimum Wire Diameter (metric) | 3.18 mm |
| Minimum Wire Gauge | 12 AWG |
| Primary Noun, Basic Function.1 | Sleeve |
| Print Technology | Thermal Transfer |
| Printable Sides | Double-Side Printable |
| Printer Compatibility | BBP72, i7100, i7500, PR Plus, THT 3 in Core Printers |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 250 |
| Quantity per Row | 1 |
| Recommended Ribbon | i75-R6600, IP-R6600, R6600 |
| Recommended Ribbon Series | R6600 |
| Recovered Diameter (imperial) | 0.125 in |
| Recovered Diameter (metric) | 3.18 mm |
| Recovered Wall Thickness (imperial) | 0.024 in |
| Recovered Wall Thickness (metric) | 0.61 mm |
| Resistance Properties | Chemical-resistant, Corrosion-resistant, Humidity-resistant, Smear-resistant, UV-resistant, Weather-resistant |
| Ribbon Series | R6600 |
| Roll Width (imperial) | 2 in |
| Roll Width (metric) | 50.80 mm |
| SAP B-Number | B-344 |
| SAP Local Description | 3FR-375-2-YL-S |
| Service Temperature Range (°C) | -55 °C - 130.6 °C |
| Service Temperature Range (°F) | -67 °F - 267 °F |
| Shrink Ratio | 3:1 |
| Sleeve Size (imperial) | 0.375 in Dia x 2 in W |
| Sleeve Size (metric) | 9.53 mm Dia x 50.80 mm W |
| Sleeve Slits | No |
| Sleeve Width (imperial) | 2 in |
| Sleeve Width (metric) | 50.80 mm |
| Smart Cell | No |
| Trade Name | PermaSleeve |
| Vertical Repeat (imperial) | 1 in |
| Vertical Repeat (metric) | 25.40 mm |
| Web Width (imperial) | 3.49 in |
| Web Width (metric) | 88.65 mm |
| Width (imperial) | 2 in |
| Width (metric) | 50.80 mm |
| Wire Diameter Range (imperial) | 0.125 in to 0.32 in |
| Wire Diameter Range (metric) | 3.18 mm to 8.13 mm |
| Wire Gauge Range | 12 AWG - 4 AWG |
