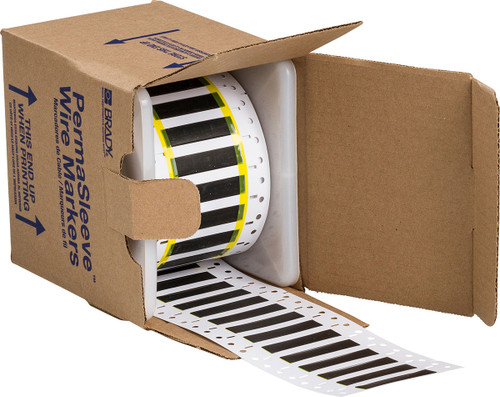

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.
| Part Number | 2HT-250-2-BK-S-2 |
| Product Number | 129786 |
| UPC | 662820653325 |
| UOM | Roll of 1000 Each |
| Brand Name | Brady |
| Application | Wire and Cable Labeling |
| Approval/Compliance (EMEA) | NASA SP-R-0022A Outgassing Performance, SAE-AMS-DTL-23053/18 (Class 2), SAE AS-81531, MIL-STD-202 Method 215K |
| Average Outdoor Durability | 2 Years |
| Brady Material Number | B-345 |
| Color | Black |
| Continuous or Die-cut | Die-cut |
| Core Diameter (imperial) | 3 in |
| Core Diameter (metric) | 76.20 mm |
| Diameter as Supplied (imperial) | 0.25 in |
| Diameter as Supplied (metric) | 6.35 mm |
| Dimensions (imperial) | 0.439 in H x 1 in W |
| Dimensions (metric) | 25,40 mm (W) x 11,15 mm (H) |
| Enables Industry Compliance (North America) | ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202G, NASA SP-R-0022A, SAE-AMS-DTL-23053, SAE-AS-81531 |
| Finish | Matte |
| Format | IP Enabled |
| Height (imperial) | 0.439 in |
| Height (metric) | 11.15 mm |
| Indoor or Outdoor Use | Outdoor Use |
| Industry Compliance MIL_STD | MIL-STD-202G, Method 215K |
| Label Properties | Heat Shrink |
| Material | High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve |
| Material Properties | Flame-retardant, Heat-shrinkable |
| Material Type | Polyvinylidene |
| Maximum Service Temperature (°C) | 225 °C |
| Maximum Service Temperature (°F) | 437 °F |
| Maximum Wire Diameter (imperial) | 0.215 in |
| Maximum Wire Diameter (metric) | 5.46 mm |
| Maximum Wire Gauge | 8 AWG |
| Minimum Service Temperature (°C) | -55 °C |
| Minimum Service Temperature (°F) | -67 °F |
| Minimum Wire Diameter (imperial) | 0.125 in |
| Minimum Wire Diameter (metric) | 3.18 mm |
| Minimum Wire Gauge | 12 AWG |
| Primary Noun, Basic Function.1 | Sleeve |
| Print Technology | Thermal Transfer |
| Printable Sides | Double-Side Printable |
| Printer Compatibility | BBP72, i5100, i7100, i7500, PR Plus, IP Series, THT 3 in Core Printers |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 1000 |
| Quantity per Row | 2 |
| Recommended Ribbon | i75-R4400-WT, IP-R4400-WT, R4400-WT |
| Recommended Ribbon Series | R4400W, R6800 |
| Recovered Diameter (imperial) | 0.125 in |
| Recovered Diameter (metric) | 3.18 mm |
| Recovered Wall Thickness (imperial) | 0.015 in |
| Recovered Wall Thickness (metric) | 0.38 mm |
| Resistance Properties | Chemical-resistant, Corrosion-resistant, High Temperature-resistant, Humidity-resistant, UV-resistant, Weather-resistant |
| Roll Width (imperial) | 2 in |
| Roll Width (metric) | 50.80 mm |
| SAP B-Number | B-345 |
| SAP Local Description | 2HT-250-2-BK-S-2 |
| Service Temperature Range (°C) | -55 °C - 225 °C |
| Service Temperature Range (°F) | -67 °F - 437 °F |
| Shrink Ratio | 2:1 (3:1 for 0.094 in Dia) |
| Sleeve Size (imperial) | 0.25 in Dia x 1 in W |
| Sleeve Size (metric) | 6.35 mm Dia x 25.40 mm W |
| Sleeve Slits | Yes |
| Sleeve Width (imperial) | 1 in |
| Sleeve Width (metric) | 25.40 mm |
| Smart Cell | No |
| Trade Name | PermaSleeve |
| Vertical Repeat (imperial) | 0.75 in |
| Vertical Repeat (metric) | 19.05 mm |
| Web Width (imperial) | 3.49 in |
| Web Width (metric) | 88.65 mm |
| Width (imperial) | 1 in |
| Width (metric) | 25.40 mm |
| Wire Diameter Range (imperial) | 0.125 in to 0.215 in |
| Wire Diameter Range (metric) | 3.18 mm to 5.46 mm |
| Wire Gauge Range | 12 AWG - 8 AWG |
